DW-BJCUBE-LX

Blackjack Cube-LX
Find a Reseller Request a Demo Contact Us FAQs

NDAA TAA


Features
  • Supports All ONVIF Conformant IP Cameras
  • Storage options 2-18TB Internal Storage
  • Record up to 16IP Cameras with Total Throughput up to 80Mbps
  • DVI-D or True HD video output
  • Dual Network Ports
  • Linux® Ubuntu® 18.04 LTS OS
  • Hosting DW Spectrum® IPVMS for Setup, Configuration, Monitoring and Recording
  • One-time Recording License Charge, Fully Transferable Between Cameras and Encoders
  • No Annual Maintenance Fees
  • Simple Enterprise Scalability
  • Auto Device Discovery
  • Dual Stream Recording
  • NDAA/TAA compliant
  • 5 Year Limited Warranty

Max throughput and IP camera support

This Blackjack® server can record and manage single-sensor and multi-sensor IP cameras of any resolution up to of 80Mbps throughput.

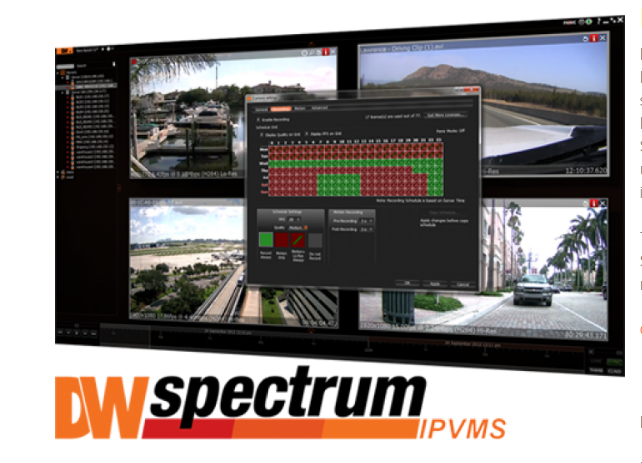

DW Spectrum® IPVMS

DW Spectrum® IPVMS is an endlessly customizable IP Video Management platform that gives users the ability to create tailored network video solutions for any type of project, from the office or on in the field.

Dual network cards

Optimize network bandwidth by utilizing dual network ports, to build a separate network for the surveillance system and keep that traffic off the main network, reserved for the NVR’s communication.

Designed and commissioned in the U.S.A

All DW recorders, workstations and NAS devices are designed, assembled and inspected in our California facility. Each product undergoes multiple levels of quality control to guarantee the highest quality and performance.

Specifications

Video
CPU Intel® i3® processor
Display Modes Unlimited, Sequence, Customizable
Display Speed Up to 30fps per channel
Local Video Outputs True HD, 1 display output at a time, DVI-D
Max video storage rate (Mbps) 80Mbps
Memory 4GB, Option: DW-RME8 - upgrade memory to 16GB*, * Available at initial order only
Video Card On-board Intel Graphics
Video Compression H.264, H.265
Video Operating System Linux® OS
OS on SSD N/A
Storage
Raw internal storage options 2TB  4TB  6TB  9TB  12TB  18TB
Max HDD Bay 3 x SATA HDD
Maximum Storage 18TB
Performance
Playback Functions Timeline, Calendar, Event search, Thumbnail search, Smart motion search
PTZ control ONVIF
Recording Modes Continuous, Motion detection, Motion + low res always
System Operation Graphical user interface (GUI), USB mouse (included), Remote via DW Spectrum IPVMS
Network
Backup Network backup via DW Spectrum IPVMS
Ethernet Ports 2x 1G Ethernet (RJ45)
Network Remote Software DW Site Viewer for Apple TV, DW Spectrum Mobile App, Cross-platform - Windows®, Linux Ubuntu® and Mac®, DW Mobile Plus
Pre-loaded VMS software DW Spectrum® IPVMS
Electrical
Power Consumption 300W, A UPS is recommended
General
Accessories Keyboard, Mouse
Certification NDAA Compliance, ONVIF Conformant, TAA Compliance
Form Factor Desktop / Cube
Included IP licenses 4
Operating Temperature and Humidity 41 ~ 104 °F (5~40 °C), 20 ~ 90% RH
Recorder Dimensions (H X W X D) 8.5" x 12.8” x 7.5” (215.9 x 325.1 x 190.5 mm)
Recording Licenses (Optional. Sold Separately) DW-SPECTRUMLSC001 - Single DW Spectrum® IPVMS Recording License
DW-SPECTRUMLSC004 - Four (4) DW Spectrum® IPVMS Recording Licenses
DW-SPECTRUMLSC010 - Ten (10) DW Spectrum® IPVMS Recording Licenses
DW-SPECTRUMLSC020 - Twenty (20) DW Spectrum® IPVMS Recording Licenses
DW-SPECTRUMLSC050 - Fifty (50) DW Spectrum® IPVMS Recording Licenses
DW-SPECTRUMLSC100 - One hundred (100) DW Spectrum® IPVMS Recording Licenses
DW-SPCP04LSC004 - Four (4) DW Spectrum® Analog Encoder IPVMS Licenses
DW-SPIOLSC001 - Single DW Spectrum® I/O Module IPVMS License
DW-SPCP16LSC016 - Sixteen (16) DW Spectrum® Analog Encoder IPVMS Licenses
DW-SPVWALL1X2 - Single DW Spectrum® Video Wall IPVMS License
Custom-ordered licenses are available by request.
Lifetime upgrades are included with no annual renewal fees.
Serial ports ONVIF
USB interface Yes
Warranty 5 Year Limited Warranty

Part Numbers

Model #

Storage Size
DW-BJCUBE2T-LX
2TB
DW-BJCUBE4T-LX
4TB
DW-BJCUBE6T-LX
6TB
DW-BJCUBE9T-LX
9TB
DW-BJCUBE12T-LX
12TB
DW-BJCUBE18T-LX
18TB

Purchasing Options

DW Spectrum IPVMS Licensing Options
DW Spectrum IPVMS Licensing Options

Part Number

Description

DW-SPECTRUMLSC001
Single DW Spectrum® IPVMS License, No Annual Renewal, No Upgrade Required.
DW-SPECTRUMLSC004
Four (4) DW Spectrum® IPVMS Licenses, No Annual Renewal, No Upgrade Required.
DW-SPECTRUMLSC010
Ten (10) DW Spectrum® IPVMS Licenses, No Annual Renewal, No Upgrade Required.
DW-SPECTRUMLSC020
Twenty (20) DW Spectrum® IPVMS Licenses, No Annual Renewal, No Upgrade Required.required.
DW-SPECTRUMLSC050
Fifty (50) DW Spectrum® IPVMS Licenses, No Annual Renewal, No Upgrade Required.
DW-SPECTRUMLSC100
One Hundred (100) DW Spectrum® IPVMS Licenses, No Annual Renewal, No Upgrade Required.
DW-SPCP04LSC004
Single DW Spectrum® IPVMS License - allows up to 4-channel or recording when used with DW-CP04 and DW-CP16,  No Annual Renewal, No Upgrade Required.
DW-SPVWALL1X2Single DW Spectrum® IPVMS Video Wall License - 1 Operator, 2 Monitors,  No Annual Renewal, No Upgrade Required.

Videos

June 25, 2020 Customer Webinar Recording: Blackjack® Server System Configuration

Videos

June 25, 2020 Customer Webinar Recording: Blackjack® Server System Configuration

Documents

Title Type
Blackjack Brochure
pdf Download
Blackjack Cube Quick Start Guide
pdf Download
Blackjack Cube-LX AE specifications
doc Download
Blackjack Cube-LX datasheet
pdf Download
DW Spectrum® IPVMS Manual
pdf Download
DW-BJCUBE-LX CAD Drawing
dwg Download
View All Documents

Software

Gen 5

Linux OS
Title Type Release Notes Version Upload Date Compatibility Size
DW Spectrum IPVMS Client v5.0.0.36183 Linux x64 Bit deb v5.0.0.36183 02/09/2023 174.78 MB Download
DW Spectrum IPVMS Server v5.0.0.36183 Linux x64 Bit deb v5.0.0.36183 02/09/2023 84.64 MB Download
DW Witness Plugin for Linux v5.0.0.35746 so v5.0.0.35746 10/21/2022 0.21 MB Download
Windows OS
Title Type Release Notes Version Upload Date Compatibility Size
DW Spectrum IPVMS Client v5.0.0.36183 Windows x64 Bit exe v5.0.0.36183 01/12/2023 146.68 MB Download
MAC OS
Title Type Release Notes Version Upload Date Compatibility Size
DW Spectrum IPVMS Client v5.0.0.36183 Mac ARM x64 Bit zip v5.0.0.36183 01/27/2023 124.84 MB Download
DW Spectrum IPVMS Client v5.0.0.36183 Mac x64 Bit zip v5.0.0.36183 01/27/2023 136.26 MB Download
Plug-in
Title Type Release Notes Version Upload Date Compatibility Size
DW Spectrum IPVSM Paxton Plug-in v5.0.0.36183-Net2v5 exe v5.0.0.36183 01/12/2023 1.24 MB Download
DW Spectrum IPVSM Paxton Plug-in v5.0.0.36183-Net2v6 exe v5.0.0.36183 01/12/2023 1.28 MB Download
DW Spectrum IPVMS C•CURE 9000 Plug-in v5.0 zip - 5.0 11/16/2022 DW Spectrum 25.77 MB Download
DW Witness Plugin for Linux v5.0.0.35746 so v5.0.0.35746 10/21/2022 0.21 MB Download

Version 4.2

Linux OS
Title Type Release Notes Version Upload Date Compatibility Size
DW Spectrum IPVMS Client v4.2.0.32842 Linux x64 Bit deb v4.2.0.32842 09/20/2021 167.46 MB Download
DW Spectrum IPVMS Server v4.2.0.32842 Linux x64 Bit deb v4.2.0.32842 09/20/2021 63.82 MB Download
MAC OS
Title Type Release Notes Version Upload Date Compatibility Size
DW Spectrum IPVMS Client v4.2.0.32842 Mac dmg v4.2.0.32842 09/20/2021 121.98 MB Download
