Home Recorders DW-BJP1U, DW-BJP1U-LX

DW-BJP1U
DW-BJP1U-LX

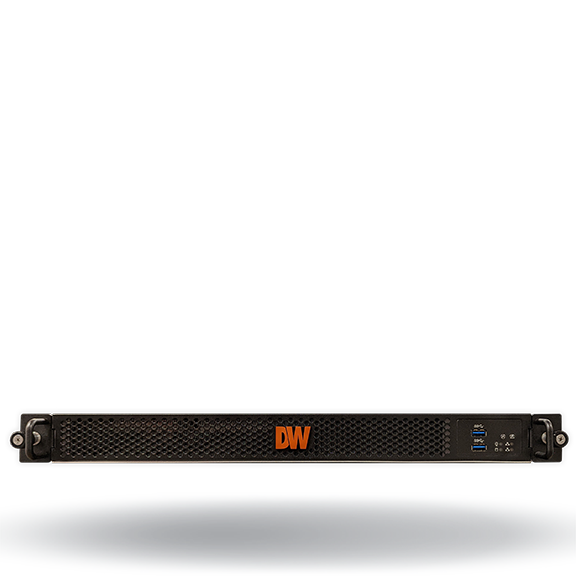

Blackjack P-Rack 1U 4-Bay Chassis
Find a Reseller Request a Demo Contact Us FAQs


NDAA TAA


Features
  • Supports All ONVIF conformant IP cameras
  • Storage options 16-48TB internal storage
  • Record and manage single- and multi-sensor IP cameras of any resolution up to 360Mbps throughput
  • True HD, VGA and DVI local monitoring outputs ports
  • Dual network ports
  • Windows® 10 IoT or Linux® Ubuntu® 18.04 LTS OS on separate SSD
  • Hosting DW Spectrum® IPVMS for setup, configuration, monitoring and recording
  • One-time recording license charge, fully transferable between cameras and encoders
  • One (1) DW Spectrum® IPVMS 4-channel licenses included (DW-SPECTRUMLSC004)
  • No annual maintenance fees
  • Simple enterprise scalability
  • Auto device discovery
  • Dual stream recording
  • Rail kit Included
  • USB mouse and keyboard included
  • Designed, assembled and tested in the U.S.A.
  • NDAA/TAA compliant

Max throughput and IP camera support

This Blackjack® server can record and manage single-sensor and multi-sensor IP cameras of any resolution up to of 360Mbps throughput.

DW Spectrum® IPVMS

DW Spectrum® IPVMS is an endlessly customizable IP Video Management platform that gives users the ability to create tailored network video solutions for any type of project, from the office or on in the field.

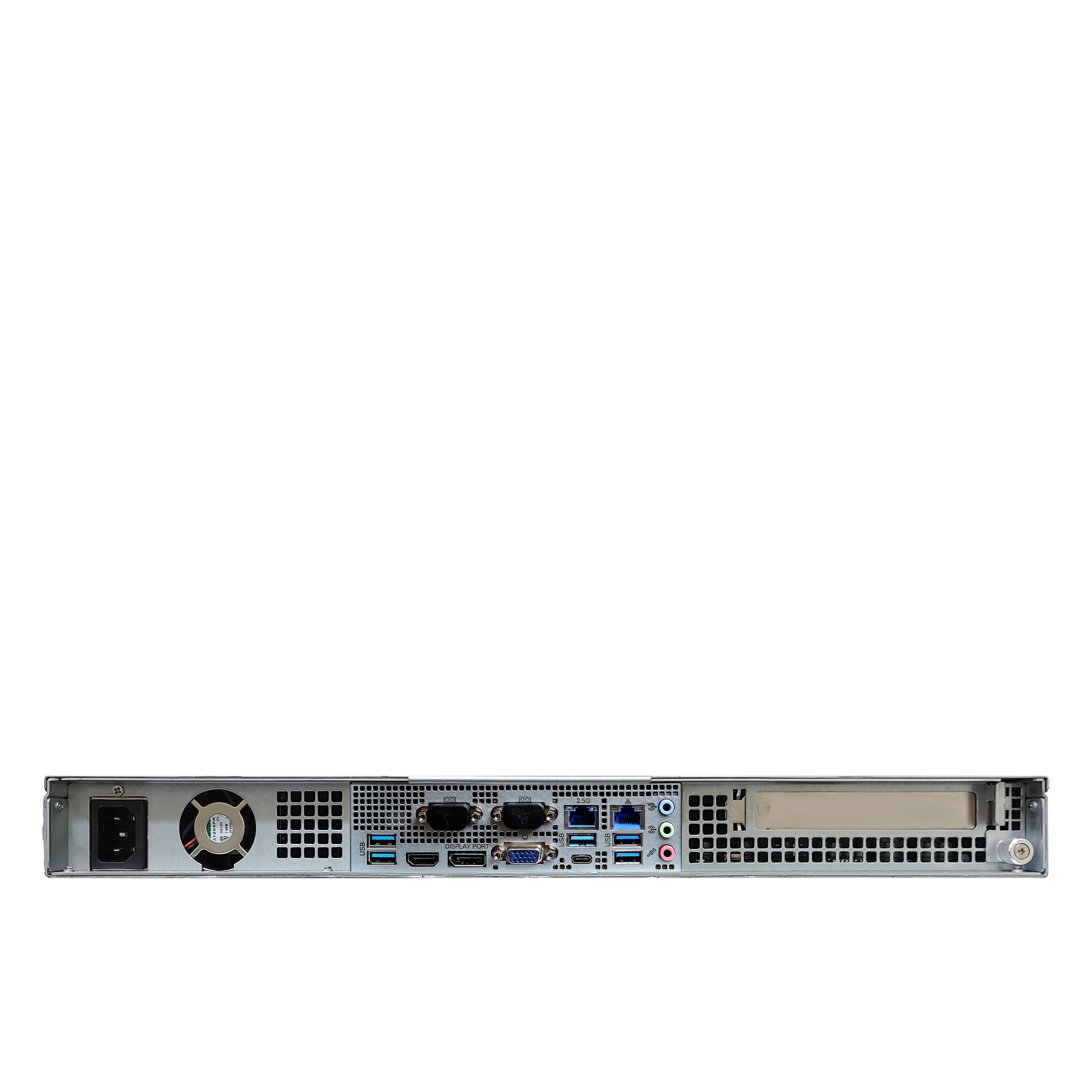

Dual network cards

Optimize network bandwidth by utilizing dual network ports, to build a separate network for the surveillance system and keep that traffic off the main network, reserved for the NVR’s communication.

Dual power supply

Redundancy for reliability.

Designed and commissioned in the U.S.A

All DW recorders, workstations and NAS devices are designed, assembled and inspected in our California facility. Each product undergoes multiple levels of quality control to guarantee the highest quality and performance.

Specifications

Video
CPU Intel® i5® processor
Display Modes Unlimited, Sequence, Customizable
Display Speed Up to 30fps per channel
Local Video Outputs True HD, VGA, DVI, 1 display output at a time
Max video storage rate (Mbps) 360Mbps
Memory 16GB
Video Card GeForce 210 512MB, Option: DW-RV4H - 4 head HD video card*, * Available at initial order only
Video Compression H.264, H.265
Video Operating System Linux® OS, Windows®10
OS on SSD 150GB SSD
Storage
Raw internal storage options 16TB  32TB  48TB
Max HDD Bay 3 x SATA HDD
Maximum Storage 48TB
Performance
Playback Functions Timeline, Calendar, Event search, Thumbnail search, Smart motion search
PTZ control ONVIF
Recording Modes Continuous, Motion detection, Motion + low res always, Object only, Object + Low res, Motion + Object, Motion + Object + Low res
System Operation Graphical user interface (GUI), USB mouse (included), Remote via DW Spectrum IPVMS
Network
Backup Network backup via DW Spectrum IPVMS
Ethernet Ports 2x 1G Ethernet (RJ45)
Network Remote Software DW Site Viewer for Apple TV, DW Spectrum Mobile App, Cross-platform - Windows®, Linux Ubuntu® and Mac®, DW Mobile Plus
Pre-loaded VMS software DW Spectrum® IPVMS
Electrical
Power Consumption 300W, A UPS is recommended
General
Accessories Keyboard, Mouse
Certification NDAA Compliance, ONVIF Conformant, TAA Compliance
Form Factor Rack mount
Included IP licenses 4
Operating Temperature and Humidity 41 ~ 104 °F (5~40 °C), 20 ~ 90% RH
Rail kit Included
Recorder Dimensions (H X W X D) 17.32” x 20.86” x 1.718 (440 x 530 x 43.65 mm)
Recording Licenses (Optional. Sold Separately) DW-SPECTRUMLSC001 - Single DW Spectrum® IPVMS Recording License
DW-SPECTRUMLSC004 - Four (4) DW Spectrum® IPVMS Recording Licenses
DW-SPECTRUMLSC010 - Ten (10) DW Spectrum® IPVMS Recording Licenses
DW-SPECTRUMLSC020 - Twenty (20) DW Spectrum® IPVMS Recording Licenses
DW-SPECTRUMLSC050 - Fifty (50) DW Spectrum® IPVMS Recording Licenses
DW-SPECTRUMLSC100 - One hundred (100) DW Spectrum® IPVMS Recording Licenses
DW-SPCP04LSC004 - Four (4) DW Spectrum® Analog Encoder IPVMS Licenses
DW-SPIOLSC001 - Single DW Spectrum® I/O Module IPVMS License
DW-SPCP16LSC016 - Sixteen (16) DW Spectrum® Analog Encoder IPVMS Licenses
DW-SPVWALL1X2 - Single DW Spectrum® Video Wall IPVMS License
Custom-ordered licenses are available by request.
Lifetime upgrades are included with no annual renewal fees.
Serial ports ONVIF
USB interface Yes
Warranty 5 Year Limited Warranty

Part Numbers

Model #*

Storage Size

DW-BJP1U16T
16TB
DW-BJP1U32T
32TB
DW-BJP1U48T
48TB
* For Linux OS models, add -LX at the end of the part number.

Purchasing Options

DW Spectrum IPVMS Licensing Options
DW Spectrum IPVMS Licensing Options

Part Number

Description

DW-SPECTRUMLSC001
Single DW Spectrum IPVMS License, No Annual Renewal, No Upgrade Required.
DW-SPECTRUMLSC004
Four (4) DW Spectrum IPVMS Licenses, No Annual Renewal, No Upgrade Required.
DW-SPECTRUMLSC010
Ten (10) DW Spectrum IPVMS Licenses, No Annual Renewal, No Upgrade Required.
DW-SPECTRUMLSC020
Twenty (20)  DW Spectrum IPVMS Licenses, No Annual Renewal, No Upgrade Required.required.
DW-SPECTRUMLSC050
Fifty (50)  DW Spectrum IPVMS Licenses, No Annual Renewal, No Upgrade Required.
DW-SPECTRUMLSC100
One Hundred (100)  DW Spectrum IPVMS Licenses, No Annual Renewal, No Upgrade Required.
DW-SPCP04LSC004
Single DW Spectrum IPVMS License - allows up to 4-channel or recording when used with DW-CP04 and DW-CP16,  No Annual Renewal, No Upgrade Required.
DW-SPVWALL1X2Single DW Spectrum IPVMS Video Wall License - 1 Operator, 2 Monitors,  No Annual Renewal, No Upgrade Required.

Additional Hardware Options (Available at time of initial order only):

Part Number

Description

DW-RV4H
4 head HD Video Card - Available at time of initial order only.
