Home IP Cameras DWC-PZ21M69TW

DWC-PZ21M69TW

MEGApix Pano 21MP multi-sensor vandal IP camera with fixed lenses
Find a Reseller Request a Demo Contact Us FAQs
This camera requires a wall mount, ceiling mount or flush mount, sold separately, to complete the camera’s installation.

NDAA NDAA


Features
  • 4x 6.4MP 1/1.8" image sensor at real-time 30fps
  • 21MP 180° panoramic view IP camera
  • 4x 8.0mm fixed lens
  • Fast frame rates: real-time 30fps at 21MP
  • Zero distortion anti-reflective glass
  • PoE injector included
  • Dual codecs (H.264, MJPEG) with simultaneous dual-stream
  • Two-way audio
  • Easy image alignment and stitching
  • Smart DNR™ 3D digital noise reduction
  • True day/night with mechanical IR cut filter
  • Auto gain control (AGC)
  • Auto white balance (AWB)
  • Motion detection
  • Alarm sensor input
  • Relay output
  • Web server built-in
    • Show More

4-sensor 180° view IP camera

Get wide views and forensic details from one camera. The MEGApix® Pano™ 21MP 4-sensor cameras produce 180° views at real-time 30fps via a single PoE Plus connection.

Megapixel resolution in multi-sensor IP cameras

DW’s technology delivers crystal clear images in any resolution. Higher resolution offers forensic details with zooming into the camera’s field of view.

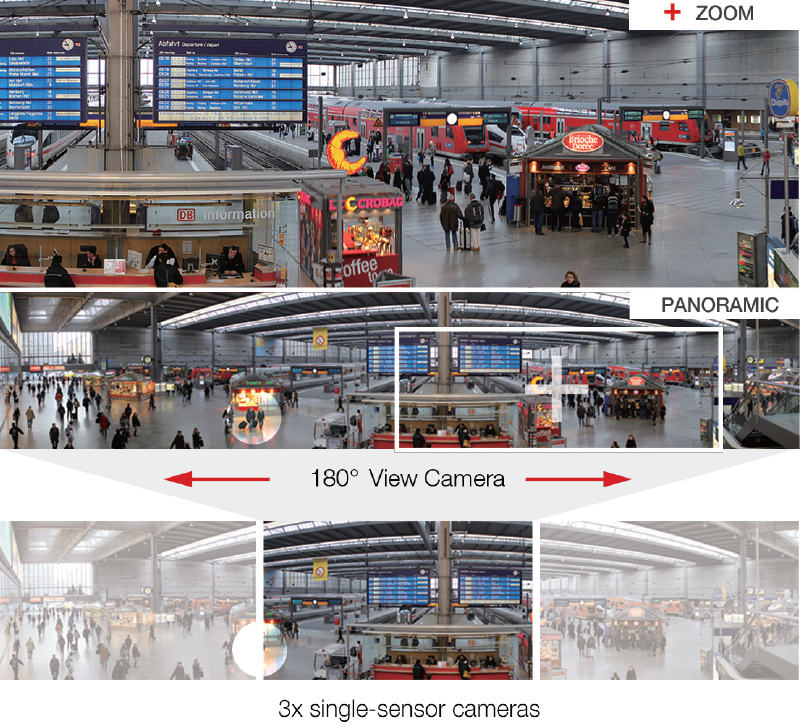

Easy image stitching

All DW’s multi-sensor panoramic cameras use three or four sensors. The camera then merges the individual sensor’s image into a 180° view, stitched automatically by selecting the auto-alignment option from the camera’s settings.

Fast framerate

DW’s panoramic cameras can stream 180-view images up to 8K/32MP at real-time 30fps, providing a smooth video, with no loss of details between frames.

ONVIF® Conformant

DW’s ONVIF conformant IP products allow you to bring our robust solutions to any surveillance system with other ONVIF components, creating a truly unique solution, to match your specific needs.

Specifications

Image sensor 5MP 1/1.8" CMOS sensor (x4)
Maximum resolution 21MP (4x 5.3MP)
Minimum Scene Illumination in color 0.16 lux (color)
Total Pixels 4x 3096 (H) x 2080 (V)
Lens
Focal Length 8.0mm (x4)
Horizontal Field of View (HFOV) 180°
Lens Type Fixed Lens
Vertical Field of View (VFOV) 30°
I/O
Audio compression G.711
I/O Alarm in/out 1 input, 1 output
I/O Audio in/out 1 output, 1 input (1.0Vms, 3K ohm)
Operational
3D digital noise reduction Smart DNR™ 3D Digital Noise Reduction
Auto gain control Auto
Day and night Auto day/night, Day (color), Night (B/W)
De-fog Yes
Memory slot 4x Micro SD/SDHC/SDXC class 10 cards (cards not included), Up to 1TB micro SD / exFAT
Mirror/flip Yes
Motion Detection Yes
Operational features True D/N
Operational Notifications Email, FTP server, Alarm output activation, SD card recording
Privacy Zones 16 programmable privacy masks
Shutter Mode Auto, Manual, Slow Shutter, Anti-Flicker
Shutter Speed 1/15 ~ 1/32000
Slow Shutter Speed Off, x2, x3, x5, x6, x7.5, x10
White Balance Yes
Wide Dynamic Range (WDR) D-WDR
Network
Bitrate Control Multi-streaming CBR/VBR at H.264 (controllable frame rate and bandwidth)
IP IPv4
LAN 1000Base-T (1Gbps)
Network resolution 4x H.264: 3072x1728, 640x360, 4x MJPEG: 3072x1728, 640x360
Network Web Viewer Windows® OS, Mac® OS, Linux® OS, Internet Explorer® browser, Google Chrome® browser, Mozilla Firefox® browser
Protocol 802.1x, ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, HTTPs, ICMP, NTP, ONVIF, PPPoE, QoS, RTCP, RTP (UDP/TCP), RTSP, SMTP, SNMPv1/v2/v3 (MIB-2), SSL, Syslog, TCP/IP, Telnet, UDP, Zeroconf (AutoIP)
Security HTTPS (TLS), IP filtering, MAC filtering, 802.1x, Digest authemtication (ID/PW), Multi-user authority
Stream Speed Up to 30fps at all resolutions
Video Bitrate 100Kbps~10Mbps, multi-rate for preview and recording
Video Compression Type H.264, MJPEG

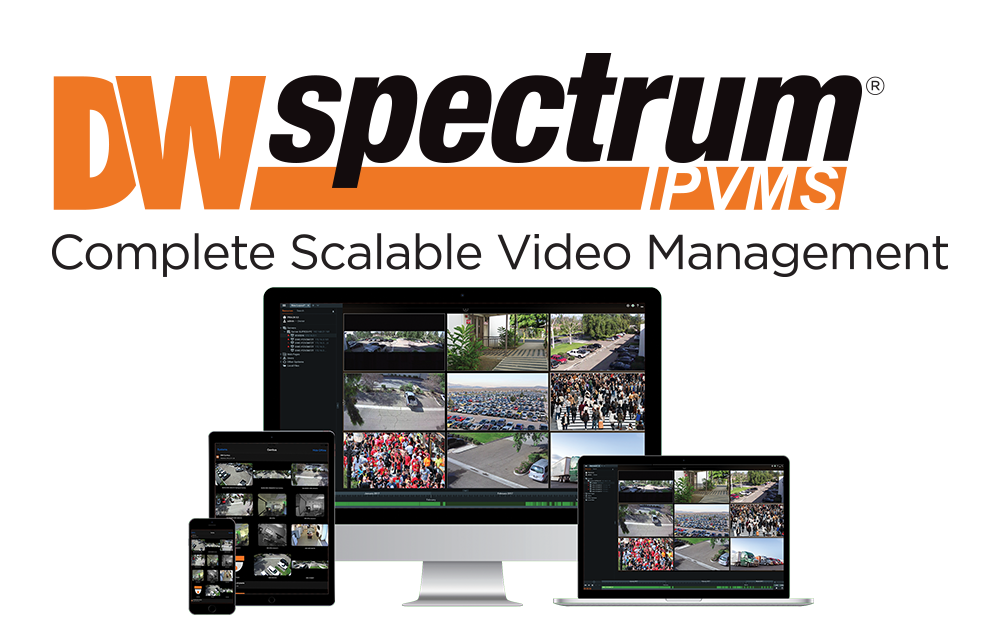

Video Management Software DW Spectrum® IPVMS, Any ONVIF conformant CMS
Environmental
Compliance NDAA Compliance, TAA Compliance, UL Listing  CE, FCC
Environmental Operating Humidity 0-80% RH (non–condensing)
Environmental Operating Temperature -4°F ~ 122°F (-20°C ~ 50°C)
Mounting Accessories (Required/Optional) Required. Sold separately
Mechanical
Camera Dimensions (H X W X D) 7.55" x 4.25" (192 x 108 mm)
Camera Weight 4.40 lbs (2kg)
Housing Panoramic
IP rating Weather Resistant (IP66)
Materials Aluminum die-casting, Polycarbonate lens cover
Electrical
American wire gauge (AWG) Cable type #18
Power Consumption DC12V: max 21.5W, 1.79A, PoE+: max 23.2W
Power Requirements IEEE 802.3at PoE+ class 4, (High power PoE injector included), 12V DC
General
Warranty 5 Year Warranty

Accessories

DWC-PZCMW
Ceiling mount bracket for multi-sensor cameras
Learn more
DWC-PZHMW
Hanging mount for selected multi-sensor cameras for custom built arm mount
Learn more
DWC-PZPARAMW
Parapet mount (requires DWC-PZADPW or DWC-PV20ADPW tilting adapter, sold separately)
Learn more
DW-PZADPW
Tilting adapter for DWC-PZARAMW and multi-sensor cameras
Learn more
DWC-PZWMW
Wall mount bracket for multi-sensor cameras
Learn more
DWC-V1CNMW
Corner and pole mount bracket
Learn more
DWC-WMJUNCW
Junction box for wall mount brackets
Learn more
DWC-PMB-WLW
Pole mount bracket
Learn more
