Home Recorders DW-BJAiPxxTR

DW-BJAiPxxTR

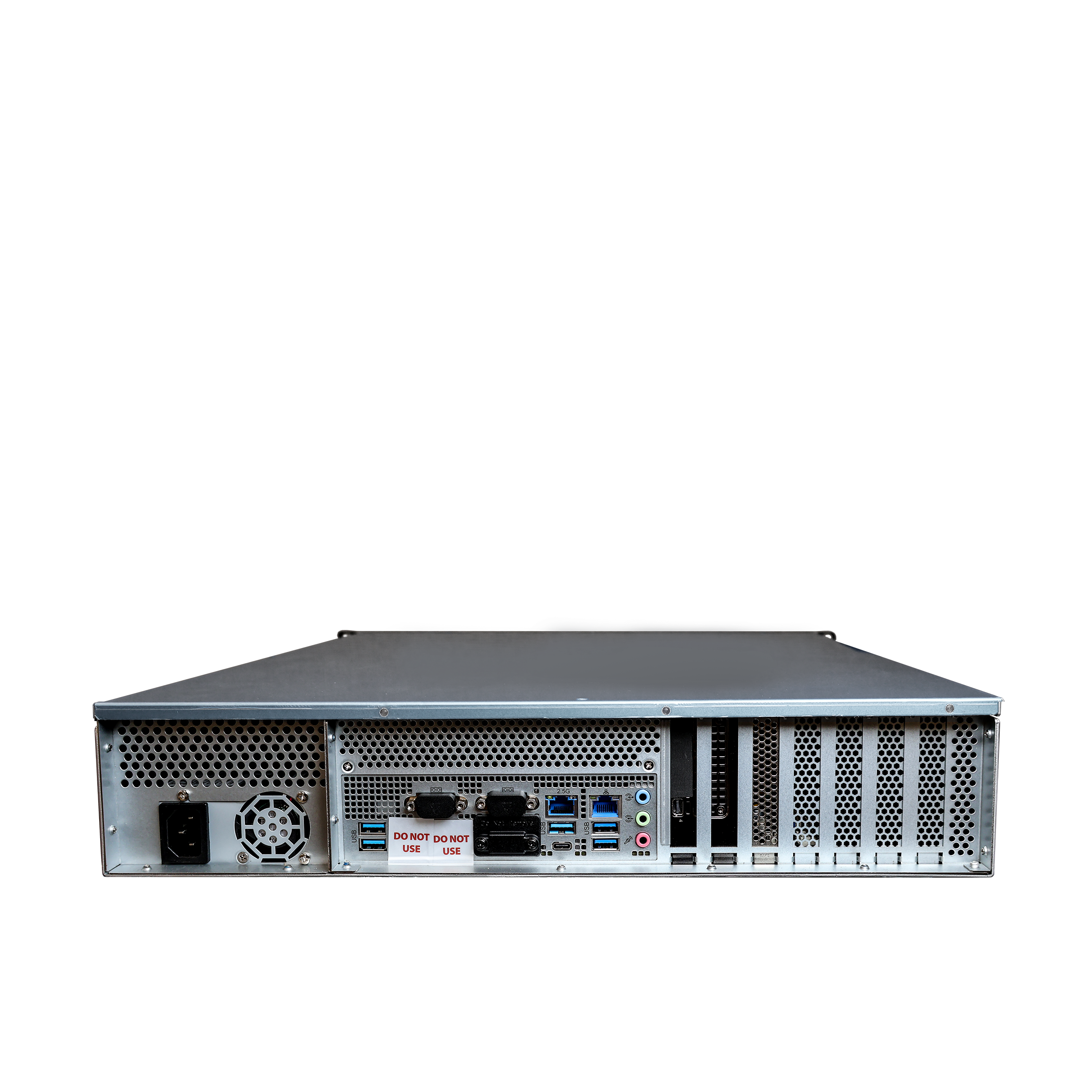

Blackjack Ai 2U rackmount video analytics server powered by DW Ai
Find a Reseller Request a Demo Contact Us FAQs
Features
  • Hosting Intelligent DW Ai software deep learning and color filter
  • Server-side analytics for non-analytic cameras
  • Analytics by Deep Learning engine
  • A single device for NVR and Analytics server for lower deployment cost
  • Record and manage single- and multi-sensor IP cameras of any resolution up to 320Mbps throughput
  • Up to 64 secondary streams
  • Supports all ONVIF conformant IP cameras
  • 80-120TB raw internal storage
  • RAID5
  • Hosting DW Spectrum® for setup, configuration, monitoring and recording
  • One (1) 4-channel license included (DW-SPECTRUMLSC004)
  • One (1) 4-channel DW Ai Server license included (DW-AiSLSC004)
  • No annual maintenance fees
  • Dual stream recording
  • Rail kit included
  • USB mouse and keyboard included
  • Designed, assembled and tested in the U.S.A.
    • Show More

Learn about how DW
solutions can work for you

View All Markets

Server-Side Analytics for Non-Analytic Cameras

Bring classified object detection (bicycles, cars, counters, forklifts, motorcycles, persons, trucks, unclassified and vans) to your existing non-analytic cameras.

All-in-One Device

Achieve lower deployment cost with a single device that performs as an NVR and an analytics server.

High Performance

Achieve high total throughput, while simultaneously running analytics.

Remote Notifications on Mobile

Receive an instant notification to any mobile device.

Designed and commissioned in the U.S.A

All DW recorders, workstations and NAS devices are designed, assembled and inspected in our California facility. Each product undergoes multiple levels of quality control to guarantee the highest quality and performance.

DW Spectrum® IPVMS

DW Spectrum® IPVMS is an endlessly customizable IP Video Management platform that gives users the ability to create tailored network video solutions for any type of project, from the office or on in the field.

Specifications

Video
CPU Intel® Core™ i7 processor
Display Modes Unlimited, Customizable, Sequence
Local Video Outputs 1x mini Display Port, For initial configuration and server management, 1 display output at a time
Memory 32GB
Video Card NVIDIA RTX A2000 12GB
Video Compression H.264, H.265
Video Operating System Windows® 10 IoT Enterprise LTSC
OS on SSD 480GB SSD
Max throughput (Mbps) 320Mbps
Storage
Raw internal storage options 080TB  100TB  120TB
RAID Options RAID5
Max HDD Bay 6 x SATA HDD
Maximum Storage 100TB (80TB, RAID5) (DW-BJAiP100TR), 120TB (100TB, RAID5) (DW-BJAiP120TR), 80TB (DW-BJAiP80TR), 120TB
Performance
Max # of analytic streams (secondary) Up to 64
Performance features A single device for NVR and Analytics server for lower deployment cost, Deep learning classifiers and logical rules engine, Server-side analytics for non-analytic cameras
Playback Functions Calendar, Event search, Smart motion search, Thumbnail search, Timeline
PTZ control ONVIF
Recording Modes Continuous, Motion + low res always, Motion + Object, Motion + Object + Low res, Motion detection, Object + Low res, Object only
System Operation Graphical user interface (GUI), Remote via DW Spectrum IPVMS, USB mouse (included)
Network
Backup Network backup via DW Spectrum IPVMS
Ethernet Ports 2x 1G Ethernet (RJ45)
Pre-loaded VMS software DW Spectrum® IPVMS
Network Remote Software Cross-platform - Windows®, Linux Ubuntu® and Mac®, DW Mobile Plus, DW Spectrum Mobile App
Electrical
Power Consumption 500W, A UPS is recommended
General
Accessories Keyboard, Mouse
Ai Configuration Tool supported OS Cross-platform - Windows® and Linux Ubuntu®
Included DW Ai Server Licenses 4 channel (DW-DWAiSLSC004)
Included IP licenses 4
Operating Temperature and Humidity 20 ~ 90% RH, 41 ~ 104 °F (5~40 °C)
Preloaded Analytic software DW Ai Server
Rail kit Included
Recorder Dimensions (H X W X D) 17.29” x 21.93” x 3.5” (439.3 x 557.1 x 88.9 mm)
Recording Licenses (Optional. Sold Separately) Custom-ordered licenses are available by request.
DW-SPCP04LSC004 - Four (4) DW Spectrum® Analog Encoder IPVMS Licenses
DW-SPCP16LSC016 - Sixteen (16) DW Spectrum® Analog Encoder IPVMS Licenses
DW-SPECTRUMLSC001 - Single DW Spectrum® IPVMS Recording License
DW-SPECTRUMLSC004 - Four (4) DW Spectrum® IPVMS Recording Licenses
DW-SPECTRUMLSC010 - Ten (10) DW Spectrum® IPVMS Recording Licenses
DW-SPECTRUMLSC020 - Twenty (20) DW Spectrum® IPVMS Recording Licenses
DW-SPECTRUMLSC050 - Fifty (50) DW Spectrum® IPVMS Recording Licenses
DW-SPECTRUMLSC100 - One hundred (100) DW Spectrum® IPVMS Recording Licenses
DW-SPIOLSC001 - Single DW Spectrum® I/O Module IPVMS License
DW-SPVWALL1X2 - Single DW Spectrum® Video Wall IPVMS License
Lifetime upgrades are included with no annual renewal fees.
USB interface Yes
Warranty 5 Year Limited Warranty
Weight (barebone, HDD not included) 45.75 lbs (20.75 kg)
Certification CE  FCC  NDAA Compliance  ONVIF Conformant  TAA Compliance
Form Factor Rack mount

Part Numbers

Model #*

Usable Storage Size**

Open Drive Bays

DW-BJAiP80TR
60TB (RAID5)
 2
DW-BJAiP100TR
80TB (RAID5)
 1
DW-BJAiP120TR
100TB (RAID5)
 --

Purchasing Options

DW Spectrum IPVMS Licensing Options

Part Number

Description

DW-SPECTRUMLSC001
Single DW Spectrum IPVMS License, No Annual Renewal, No Upgrade Required.
DW-SPECTRUMLSC004
Four (4) DW Spectrum IPVMS Licenses, No Annual Renewal, No Upgrade Required.
DW-SPECTRUMLSC010
Ten (10) DW Spectrum IPVMS Licenses, No Annual Renewal, No Upgrade Required.
DW-SPECTRUMLSC020
Twenty (20) DW Spectrum IPVMS Licenses, No Annual Renewal, No Upgrade Required.
DW-SPECTRUMLSC050
Fifty (50) DW Spectrum IPVMS Licenses, No Annual Renewal, No Upgrade Required.
DW-SPECTRUMLSC100
One Hundred (100) W Spectrum IPVMS Licenses, No Annual Renewal, No Upgrade Required.
DW-SPCP04LSC004
Single DW Spectrum IPVMS License - allows up to 4-channel or recording when used with DW-CP04 and DW-CP16, No Annual Renewal, No Upgrade Required.
DW-SPVWALL1X2Single DW Spectrum IPVMS Video Wall license - 1 Operator, 2 Monitors, No Annual Renewal, No Upgrade Required.

Ai Server License

Part Number

Description

DW-AiSLSC001
Single DW Ai Server Analytic License
DW-AiSLSC004
Four (4) DW Ai Server Analytic Licenses
DW-AiSLSC010
Ten (10) DW Ai Server Analytic Licenses
DW-AiSLSC020
Twenty (20) DW Ai Server Analytic Licenses

Additional Hardware Options (Available at time of initial order only):

Part Number

Description

DW-BJRR32GB
32GB Ram Upgrade for Blackjack RACK.
DW-BJRR4NICLow Profile Quad Port 1GbE RJ45 for Blackjack RACK.
DW-BJRR10GBNLow Profile Dual Port 10Gb SFP+ NIC for Blackjack RACK.

Videos

DW Insider Tech Webinar: Blackjack Ai Tutorial for Techs

Videos

DW Insider Tech Webinar: Blackjack Ai Tutorial for Techs

Documents

Title Type
DW-BJAiP Quick Setup Guide
pdf Download
DW-BJAiPxTR CAD drawing
dwg Download
DW-BJAiPxTR A&E specifications
doc Download
Blackjack Ai Brochure
pdf Download
Blackjack Ai user manual
pdf Download
DW-BJAiP datasheet
pdf Download
DW-BJAiP datasheet - French
pdf Download
DW-BJAiP datasheet - Spanish
pdf Download
View All Documents

Software

Title Type Release Notes Version Update Date Compatibility Size
Blackjack Ai Configuration Tool v2.10.2 exe 2.10.2 08/19/2024 48.67 MB Download
Blackjack Ai Server Plugin for Linux v2.5.52 so v2.5.52 08/19/2024 1.47 MB Download
Blackjack Ai Server Plugin for Windows v2.5.52 dll v2.5.52 08/19/2024 1.90 MB Download
Blackjack Ai Server v2.10r3 exe v2.10r3 08/19/2024 963.00 MB Download
DW Spectrum IPVMS C•CURE 9000 Plug-in v5.0 zip - 5.0 11/16/2022 DW Spectrum 25.77 MB Download
DW Witness Plugin for Linux v5.0.0.35746 so v5.0.0.35746 10/21/2022 0.21 MB Download
DW Witness Plugin for Windows v5.0.0.35746 dll v5.0.0.35746 10/21/2022 0.09 MB Download
