DW-BJRR2PxxT
DW-BJRR2PxxTLX
DW-BJRR2PxxTS

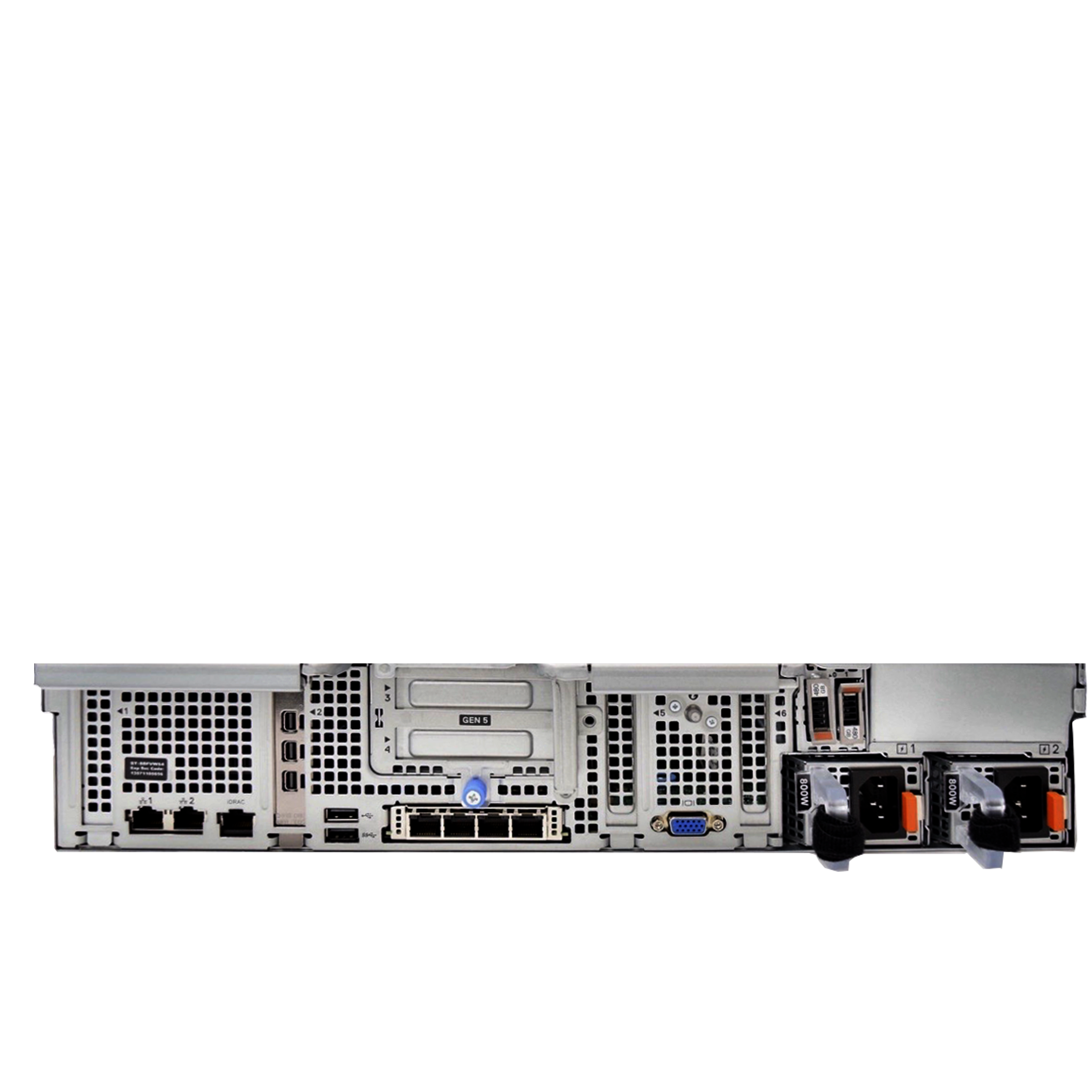

Blackjack Rack 2U 12-bay server, 32GB RAM, dual processor
Features
  • Supports all ONVIF conformant IP cameras
  • Storage options 80-240TB raw internal storage
  • Record and manage single- and multi-sensor IP cameras of any resolution up to 600Mbps throughput
  • Hot Swappable HDDs
  • OS RAID 1, Data RAID5, RAID6 options
  • Redundant power supply
  • Dedicated GPU for client application for easy configuration
  • Dual Intel® Xeon® processor
  • 2x 1G, 4 x 1G Ethernet ports
  • Windows 10®, Ubuntu® Linux®, Windows Server® OS on
  • 480GB NVMe SSD, RAID1
  • Hosting DW Spectrum® for setup, configuration, monitoring and recording
  • One-time recording license charge, fully transferable between cameras and encoders
  • Two (2) 4-channel licenses included for a total of 8 recording channels (DW-SPECTRUMLSC004)
  • No annual maintenance fees
  • Simple enterprise scalability and auto device discovery
  • Dual stream recording
  • Show More

Max throughput and IP camera support

This Blackjack® server can record and manage single-sensor and multi-sensor IP cameras of any resolution up to of 600Mbps throughput.

Next business day onsite hardware repair after remote diagnosis

If an issue occurs with your product that cannot be resolved by phone, DW will dispatch a certified technician to attempt repair of your machine at your place of business, usually the next business day.

Keep your drive after replacement to ensure data security

Our Keep Your Drive Warranty delivers users replacement hard drives, without the need to return the defective drives. Users can keep their drives and protect their data and their customer’s privacy.

DW Spectrum® IPVMS

DW Spectrum® IPVMS is an endlessly customizable IP Video Management platform that gives users the ability to create tailored network video solutions for any type of project, from the office or on in the field.

Designed and commissioned in the U.S.A

All DW recorders, workstations and NAS devices are designed, assembled and inspected in our California facility. Each product undergoes multiple levels of quality control to guarantee the highest quality and performance.

Dual network cards

Optimize network bandwidth by utilizing dual network ports, to build a separate network for the surveillance system and keep that traffic off the main network, reserved for the NVR’s communication.

Dual power supply

Redundancy for reliability.

Hot-swappable HDDs

When a drive needs to be replaced, you can easily hot-swap it with a new one, while the system is still running. There is no need to power down and lose important minutes of data to maintain your system’s drives healthy and operating.

Specifications

Video
CPU Dual Intel® Xeon® Silver processor
Display Modes Unlimited, Customizable, Sequence
Display Speed Up to 30fps per channel
Local Video Outputs 1x mini Display Port, Mini Display Port to true HD adapter (included)
Memory 32GB
Video Card Nvidia Quadro
Video Compression H.264, H.265
Video Operating System Linux® Ubuntu Desktop 20.04.3 LTS for IoT OS (DW-BJRR2P160TLX, DW-BJRR2P80TLX), Windows Server® 2022 Standard (DW-BJRR2P240TS6, DW-BJRR2P220TS6, DW-BJRR2P200TS6, DW-BJRR2P180TS6, DW-BJRR2P160TS6, DW-BJRR2P140TS6, DW-BJRR2P100TS6, DW-BJRR2P220TS, DW-BJRR2P240TS, DW-BJRR2P80TS6 , DW-BJRR2P200TS, DW-BJRR2P180TS, DW-BJRR2P140TS, DW-BJRR2P120TS, DW-BJRR2P100TS, DW-BJRR2P160TS, DW-BJRR2P80TS), Linux® Ubuntu Desktop 20.04.5 LTS OS (DW-BJRR2P240TLX6, DW-BJRR2P220TLX6, DW-BJRR2P200TLX6, DW-BJRR2P180TLX6, DW-BJRR2P160TLX6, DW-BJRR2P140TLX6, DW-BJRR2P120TLX6, DW-BJRR2P100TLX6, DW-BJRR2P80TLX6, DW-BJRR2P240TLX, DW-BJRR2P220TLX, DW-BJRR2P200TLX, DW-BJRR2P180TLX, DW-BJRR2P140TLX, DW-BJRR2P120TLX, DW-BJRR2P100TLX), Windows Server® 2019 Standard, Windows® 10 IoT Enterprise LTSC (DW-BJRR2P240T6, DW-BJRR2P220T6, DW-BJRR2P200T6, DW-BJRR2P180T6, DW-BJRR2P160T6, DW-BJRR2P140T6, DW-BJRR2P120T6, DW-BJRR2P100T6, DW-BJRR2P80T6, DW-BJRR2P240T, DW-BJRR2P220T, DW-BJRR2P200T, DW-BJRR2P180T, DW-BJRR2P140T, DW-BJRR2P120T, DW-BJRR2P100T, DW-BJRR2P160T, DW-BJRR2P80T)
OS on SSD 2 x 480GB NVMe SSD (RAID1)
Max throughput (Mbps) 600Mbps
Storage
Raw internal storage options 080TB  100TB  120TB  140TB  160TB  180TB  200TB  220TB  240TB
RAID Options OS RAID1, RAID5 (DW-BJRR2P240TLX, DW-BJRR2P220TLX, DW-BJRR2P200TLX, DW-BJRR2P180TLX, DW-BJRR2P140TLX, DW-BJRR2P120TLX, DW-BJRR2P100TLX, DW-BJRR2P240T, DW-BJRR2P220T, DW-BJRR2P200T, DW-BJRR2P180T, DW-BJRR2P140T, DW-BJRR2P120T, DW-BJRR2P100T, DW-BJRR2P220TS, DW-BJRR2P240TS, DW-BJRR2P200TS, DW-BJRR2P180TS, DW-BJRR2P140TS, DW-BJRR2P120TS, DW-BJRR2P100TS, DW-BJRR2P160T, DW-BJRR2P160TLX, DW-BJRR2P160TS, DW-BJRR2P80T, DW-BJRR2P80TLX, DW-BJRR2P80TS), RAID6 (DW-BJRR2P240TLX6, DW-BJRR2P220TLX6, DW-BJRR2P200TLX6, DW-BJRR2P180TLX6, DW-BJRR2P160TLX6, DW-BJRR2P140TLX6, DW-BJRR2P120TLX6, DW-BJRR2P100TLX6, DW-BJRR2P80TLX6, DW-BJRR2P240T6, DW-BJRR2P220T6, DW-BJRR2P200T6, DW-BJRR2P180T6, DW-BJRR2P160T6, DW-BJRR2P140T6, DW-BJRR2P120T6, DW-BJRR2P100T6, DW-BJRR2P80T6, DW-BJRR2P240TS6, DW-BJRR2P220TS6, DW-BJRR2P200TS6, DW-BJRR2P180TS6, DW-BJRR2P160TS6, DW-BJRR2P140TS6, DW-BJRR2P100TS6, DW-BJRR2P80TS6 )
Max HDD Bay 12x SATA HDD
Maximum Storage 160TB RAID 5 (140TB usable storge) (DW-BJRR2P160T, DW-BJRR2P160TLX, DW-BJRR2P160TS), 100TB (60TB, RAID6) (DW-BJRR2P100TLX6, DW-BJRR2P100T6, DW-BJRR2P100TS6), 100TB (80TB, RAID5) (DW-BJRR2P100TLX, DW-BJRR2P100T, DW-BJRR2P100TS), 120TB (100TB, RAID5) (DW-BJRR2P120TLX, DW-BJRR2P120T, DW-BJRR2P120TS), 120TB (80TB, RAID6) (DW-BJRR2P120TLX6, DW-BJRR2P120T6, DW-BJRR2P120TS6), 140TB (100TB, RAID6) (DW-BJRR2P140TLX6, DW-BJRR2P140T6, DW-BJRR2P140TS6), 140TB (120TB, RAID5) (DW-BJRR2P140TLX, DW-BJRR2P140T, DW-BJRR2P140TS), 160TB (120TB, RAID6) (DW-BJRR2P160TLX6, DW-BJRR2P160T6, DW-BJRR2P160TS6), 180TB (140TB, RAID6) (DW-BJRR2P180TLX6, DW-BJRR2P180T6, DW-BJRR2P180TS6), 180TB (160TB, RAID5) (DW-BJRR2P180TLX, DW-BJRR2P180T, DW-BJRR2P180TS), 200TB (160TB, RAID6) (DW-BJRR2P200TLX6, DW-BJRR2P200T6, DW-BJRR2P200TS6), 200TB (180TB, RAID5) (DW-BJRR2P200TLX, DW-BJRR2P200T, DW-BJRR2P200TS), 220TB (180TB, RAID6) (DW-BJRR2P220TLX6, DW-BJRR2P220T6, DW-BJRR2P220TS6), 220TB (200TB, RAID5) (DW-BJRR2P220TLX, DW-BJRR2P220T, DW-BJRR2P220TS), 240TB (200TB, RAID6) (DW-BJRR2P240TLX6, DW-BJRR2P240T6, DW-BJRR2P240TS6), 240TB (220TB, RAID5) (DW-BJRR2P240TLX, DW-BJRR2P240T, DW-BJRR2P240TS), 80TB (DW-BJRR2P80T, DW-BJRR2P80TLX, DW-BJRR2P80TS), 80TB (40TB, RAID6) (DW-BJRR2P80TLX6, DW-BJRR2P80T6, DW-BJRR2P80TS6 ), 240TB
Performance
Playback Functions Calendar, Event search, Smart motion search, Thumbnail search, Timeline
PTZ control ONVIF
Recording Modes Continuous, Motion + low res always, Motion + Object, Motion + Object + Low res, Motion detection, Object + Low res, Object only
System Operation Graphical user interface (GUI), Remote via DW Spectrum IPVMS, USB mouse (included)
Network
Backup Network backup via DW Spectrum IPVMS
Ethernet Ports 4 x 1G Ethernet on Expansion board, 2x 1G Ethernet (RJ45)
Pre-loaded VMS software DW Spectrum® IPVMS
Network Remote Software Cross-platform - Windows®, Linux Ubuntu® and Mac®, DW Mobile Plus, DW Spectrum Mobile App
Electrical
Power Consumption 800W dual power supply, A UPS is recommended, Redundant power supply
General
Accessories Keyboard, Mouse
Included IP licenses 8
Operating Temperature and Humidity 20 ~ 90% RH, 41 ~ 104 °F (5~40 °C)
Rail kit Included
Recorder Dimensions (H X W X D) 3.41” x 18.97” x 28.4” (86.8 x 482 x 721.62mm)
Recording Licenses (Optional. Sold Separately) Custom-ordered licenses are available by request.
DW-SPCP04LSC004 - Four (4) DW Spectrum® Analog Encoder IPVMS Licenses
DW-SPCP16LSC016 - Sixteen (16) DW Spectrum® Analog Encoder IPVMS Licenses
DW-SPECTRUMLSC001 - Single DW Spectrum® IPVMS Recording License
DW-SPECTRUMLSC004 - Four (4) DW Spectrum® IPVMS Recording Licenses
DW-SPECTRUMLSC010 - Ten (10) DW Spectrum® IPVMS Recording Licenses
DW-SPECTRUMLSC020 - Twenty (20) DW Spectrum® IPVMS Recording Licenses
DW-SPECTRUMLSC050 - Fifty (50) DW Spectrum® IPVMS Recording Licenses
DW-SPECTRUMLSC100 - One hundred (100) DW Spectrum® IPVMS Recording Licenses
DW-SPIOLSC001 - Single DW Spectrum® I/O Module IPVMS License
DW-SPVWALL1X2 - Single DW Spectrum® Video Wall IPVMS License
Lifetime upgrades are included with no annual renewal fees.
USB interface Yes
Warranty 5 Year Warranty, keep your hard drive, Next business day on-site hardware service (after remote diagnosis)
Weight (barebone, HDD not included) 66 lbs (29.93 kg)
Certification CE  FCC  NDAA Compliance  ONVIF Conformant  TAA Compliance  UL Listed
Form Factor Rack mount

Part Numbers

Model #*

Open Drive Bays

Available Storage**

Open Drive Bays

DW-BJRR2P80T
DW-BJRR2P80TLX
DW-BJRR2P80TS

20TB drives, 7 open drive bays 60TB, RAID5 8
DW-BJRR2P100T
DW-BJRR2P100TLX
DW-BJRR2P100TS
20TB drives, 6 open drive bays 80TB, RAID5 7
DW-BJRR2P120T
DW-BJRR2P120TLX
DW-BJRR2P120TS
20TB drives, 5 open drive bays 100TB, RAID5 6
DW-BJRR2P140T
DW-BJRR2P140TLX
DW-BJRR2P140TS
20TB drives, 4 open drive bays 120TB, RAID5 5
DW-BJRR2P160T
DW-BJRR2P160TLX
DW-BJRR2P160TS
20TB drives, 3 open drive bays 140TB, RAID5 4
DW-BJRR2P180T
DW-BJRR2P180TLX
DW-BJRR2P180TS
20TB drives, 2 open drive bays 160TB, RAID5 3
DW-BJRR2P200T
DW-BJRR2P200TLX
DW-BJRR2P200TS
20TB drives, 1 open drive bay 180TB, RAID5 2
DW-BJRR2P220T
DW-BJRR2P220TLX
DW-BJRR2P220TS
20TB drives, no open drive bays 200TB, RAID5 1
DW-BJRR2P240T
DW-BJRR2P240TLX
DW-BJRR2P240TS
20TB drives, no open drive bays 220TB, RAID5 ---

DW-BJRR2P80T6
DW-BJRR2P80TLX6
DW-BJRR2P80TS6

20TB drives, 7 open drive bays 40TB, RAID6 8
DW-BJRR2P100T6
DW-BJRR2P100TLX6
DW-BJRR2P100TS6
20TB drives, 6 open drive bays 60TB, RAID6 7
DW-BJRR2P120T6
DW-BJRR2P120TLX6
DW-BJRR2P120TS6
20TB drives, 5 open drive bays 80TB, RAID6 6
DW-BJRR2P140T6
DW-BJRR2P140TLX6
DW-BJRR2P140TS6
20TB drives, 4 open drive bays 100TB, RAID6 5
DW-BJRR2P160T6
DW-BJRR2P160TLX6
DW-BJRR2P160TS6
20TB drives, 3 open drive bays 120TB, RAID6 4
DW-BJRR2P180T6
DW-BJRR2P180TLX6
DW-BJRR2P180TS6
20TB drives, 2 open drive bays 140TB, RAID6 3
DW-BJRR2P200T6
DW-BJRR2P200TLX6
DW-BJRR2P200TS6
20TB drives, 1 open drive bay 160TB, RAID6 2
DW-BJRR2P220T6
DW-BJRR2P220TLX6
DW-BJRR2P220TS6
20TB drives, no open drive bays 180TB, RAID6 1
DW-BJRR2P240T6
DW-BJRR2P240TLX6
DW-BJRR2P240TS6
20TB drives, no open drive bays 220TB, RAID6 ---
* Linux OS models have 'LX' at the end of the part number.
* Windows Server OS models have 'S' at the end of the part number.

** RAID5 configuration reduces raw storage size by the equivalent of one (1) HDD size.
** RAID6 configuration reduces raw storage size by the equivalent of two (2) HDDs size.

Purchasing Options

DW Spectrum IPVMS Licensing Options

Part Number

Description

DW-SPECTRUMLSC001
Single DW Spectrum IPVMS License, No Annual Renewal, No Upgrade Required.
DW-SPECTRUMLSC004
Four (4) DW Spectrum IPVMS Licenses, No Annual Renewal, No Upgrade Required.
DW-SPECTRUMLSC010
Ten (10) DW Spectrum IPVMS Licenses, No Annual Renewal, No Upgrade Required.
DW-SPECTRUMLSC020
Twenty (20)  DW Spectrum IPVMS Licenses, No Annual Renewal, No Upgrade Required.required.
DW-SPECTRUMLSC050
Fifty (50)  DW Spectrum IPVMS Licenses, No Annual Renewal, No Upgrade Required.
DW-SPECTRUMLSC100
One Hundred (100)  DW Spectrum IPVMS Licenses, No Annual Renewal, No Upgrade Required.
DW-SPCP04LSC004
Single DW Spectrum IPVMS License - allows up to 4-channel or recording when used with DW-ENHD16,  No Annual Renewal, No Upgrade Required.
DW-SPCP04LSC016
Single DW Spectrum IPVMS License - allows up to 16-channel or recording when used with DW-ENHD16,  No Annual Renewal, No Upgrade Required.
DW-SPIOLSC001 IP I/O Module License - Supported devices IP I/O Modules are automatically discovered and can be used to trigger system events, actions, and alerts.
DW-SPVWALL1X2Single DW Spectrum IPVMS Video Wall License - 1 Operator, 2 Monitors,  No Annual Renewal, No Upgrade Required.

Additional Hardware Options (Available at time of initial order only):

Part Number

Description

DW-BJRR32GB
32GB Ram Upgrade for Blackjack RACK.
DW-BJRR4NIC Low Profile Quad Port 1GbE RJ45 for Blackjack RACK.
DW-BJRR10GBN Low Profile Dual Port 10Gb SFP+ NIC for Blackjack RACK.
DW-BJRR4HSERV Dell 4HR same day service for DW-BJRR and DW-BJRR2P servers.

Documents

Title Type
DW-BJRR2U/P CAD drawing
dwg Download
DW-BJRR2P datasheet - French
pdf Download
DW-BJRR2P datasheet - Spanish
pdf Download
Blackjack Brochure
pdf Download
Blackjack Rack support guide
pdf Download
Blackjack Rack quick setup guide
pdf Download
DW-BJRR2P AE specifications
doc Download
Blackjack Rack sell sheet
pdf Download
DW-BJRR2P datasheet
pdf Download

Software

Title Type Release Notes Version Update Date Compatibility Size
DW Spectrum IPVMS Latest Software Ext. URL v5.1.2.37996 07/20/2023 N/A Download
DW Spectrum IPVMS C•CURE 9000 Plug-in v5.0 zip - 5.0 11/16/2022 DW Spectrum 25.77 MB Download
DW Witness Plugin for Linux v5.0.0.35746 so v5.0.0.35746 10/21/2022 0.21 MB Download
DW Witness Plugin for Windows v5.0.0.35746 dll v5.0.0.35746 10/21/2022 0.09 MB Download
